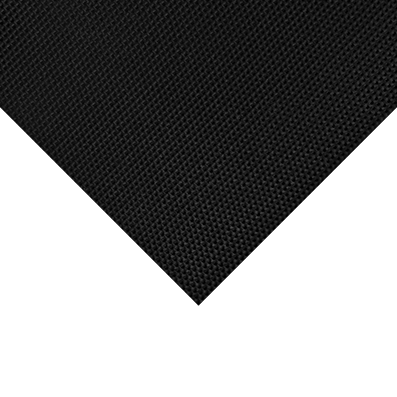

Black Conductive Mat

Black Conductive Mat

This ESD Conductive Matting has excellent heat and chemical resistance. Made of 1.5mm thick, smooth, black conductive rubber and can be supplied with a 10mm press studs, this mat is available pre-cut in a variety of sizes.

SKU: ANT082BCM

From £13.50

From: £13.50

From: £13.50
Clear
  • Description
  • Features and Benefits
  • Applications
  • Product Datasheet

Description

ESD black conductive mat has excellent heat and chemical resistance. Available in black 1.5mm thick conductive rubber. Can be supplied with a 10mm press stud in the corner (see detailed table below). Suitable for laying on workbenches. Can be used with our range of high-quality grounding cords.

Code: Description: Size (mm): Notes:

082-0045

Black Conductive Mat 550 x 900 Each – 4 studs (10mm)

082-0002F2

Black Conductive Mat 700 x 500 Each – 2 studs (10mm)

082-0002F3

Black Conductive Mat 1000 x 700 Each – 4 studs (10mm)

082-0002F4

Black Conductive Mat 700 x 3000 Each – 4 studs (10mm)

082-0002F5

Black Conductive Mat 1100 x 2400 Each – 4 studs (10mm)
  • 1.5mm thick, smooth, black conductive rubber
  • Surface Resistivity: 10– 106
  • Temperature Resistance: Max 130oC
  • Static Decay (5000 – 500V): <0.01 sec
  • Can be supplied with press studs
  • For use where heat or chemical resistance is needed
  • Suitable for laying on workbenches

Black Conductive Mat - Technical Datasheet
