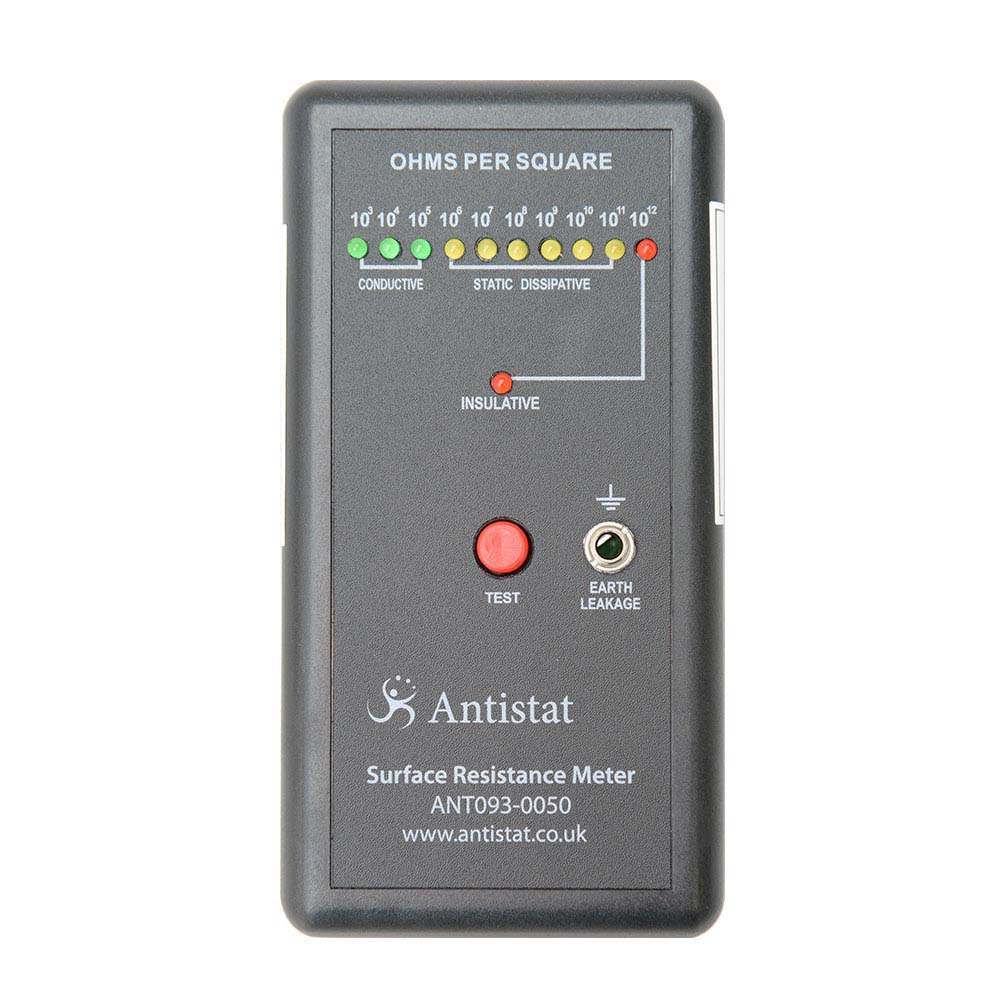

Surface Resistance Meter 9V

Our 9V Surface Resistance Meter is designed to measure surface resistance and resistance to ground. The meter will quickly, easily and accurately test conductive, static dissipative and insulative surfaces. This meter can be reliably used between 5oC – 49oC, making it suitable for a wide rage of environments.

SKU: 093-0050

£149.00

  • Description
  • Features and Benefits
  • Applications
  • Product Datasheet
  • Reviews (0)

Description

This surface resistance meter is a lightweight, portable device which is simple to use and gives accurate results every time.

  • Measuring surface material is done simply by placing the meter onto the area to be tested and pressing the test button
  • For measuring resistance to ground, place the ground lead into the earth leakage socket, connect the crocodile clip to the area to be tested and press the test button

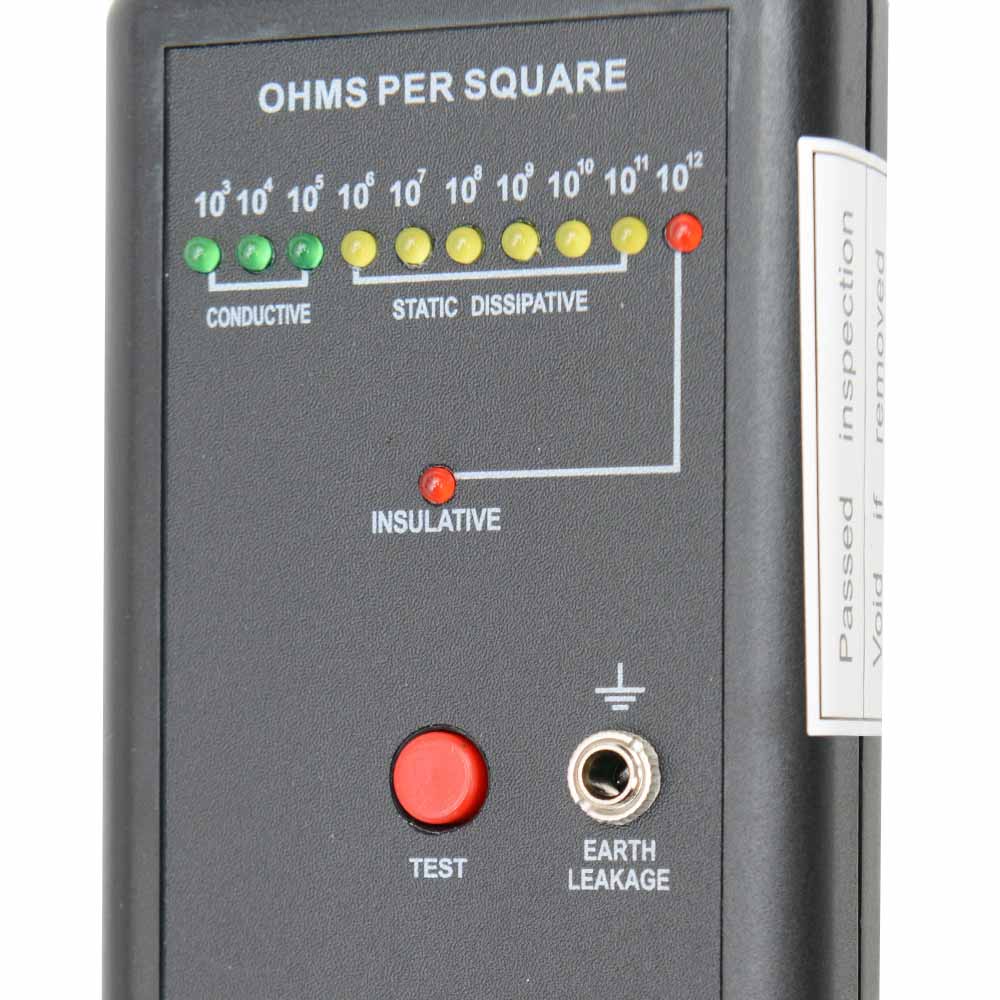

The meter will test conductive, static dissipative and insulative surfaces to give ohms per square readings as follows:

  • Conductive is indicated from 10>3<-10>5< by green LEDs
  • Static dissipative from 10>6<-10<>11< by yellow LEDs
  • Insulative from 10>12<+ by red LEDs

Please note the following:

  • Calibration should be carried out biannually (please contact us for more information)
  • Battery not supplied
  • This item may be subject to lead times
  • Test Voltage: Nominal 9V
  • Operating Temperature: 5 – 49oC
  • Weight: 6 ounces
  • Calibration should be carried out biannually (please contact us for more information)
  • Battery not supplied
  • Measuring both surface resistance and resistance to ground
  • Portable device
