3 LAYER

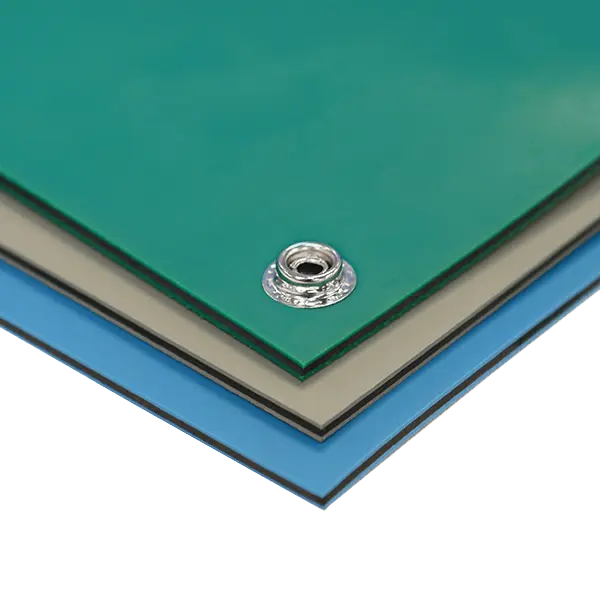

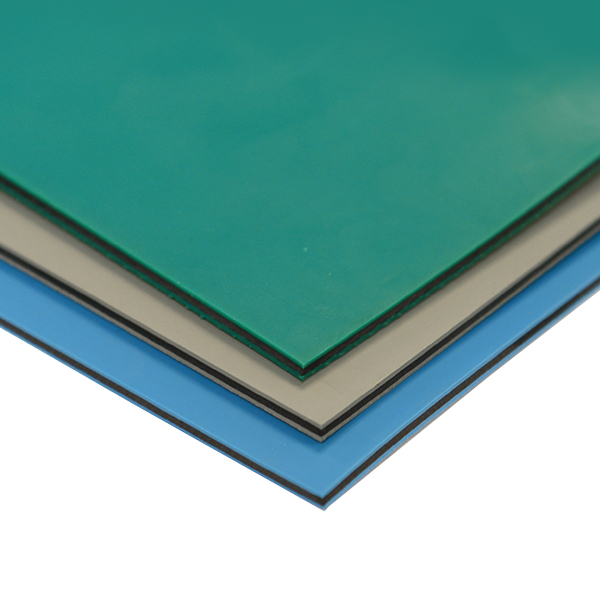

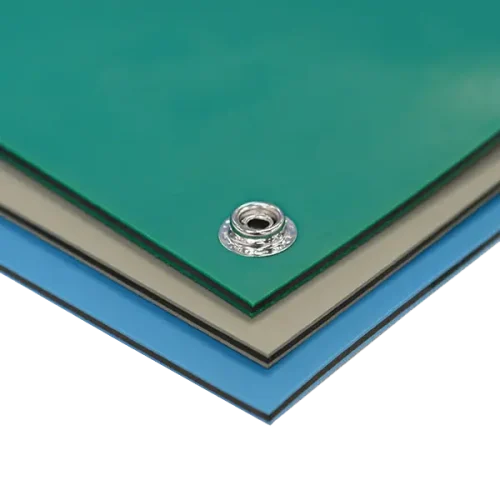

Antistatic Mat – 3 Layer, Smooth
This antistatic Mat with 3 layers and smooth finish provides excellent ESD protection. Excellent lay flat properties for quick installation, and easy to clean, this will prove to be a hard-wearing matting solution.
Available pre-cut with a 10mm press stud in each corner.
£37.90
£37.90
£37.90
- Description
- Features and Benefits
- Applications
- Product Datasheet
Description
Our antistatic mat with 3 layers and smooth finish provides excellent ESD protection. Suitable for both ESD work benches and EPA floor areas. The mat is easy to clean and has excellent lay flat properties for a flat work surface. It is also supplied with a 10mm press stud in each corner.

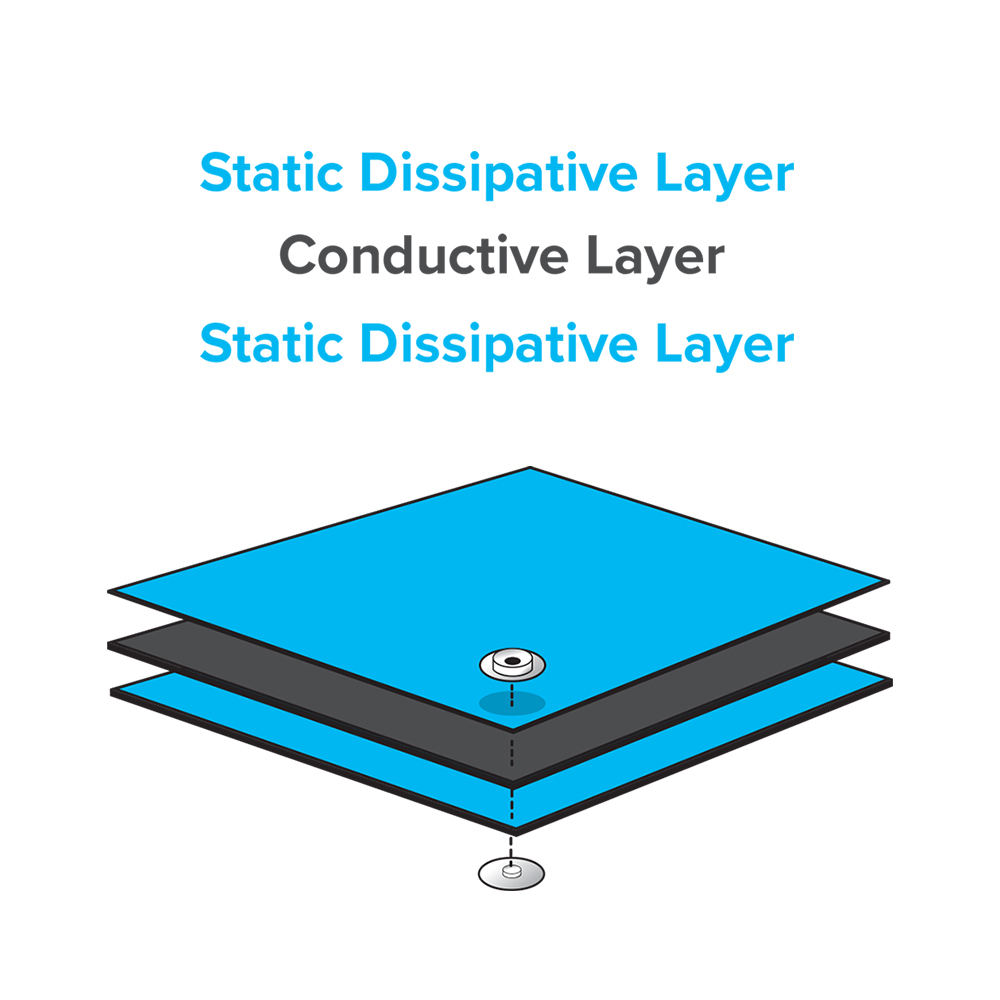

Avaialble in grey, green or blue, the mat is constructed with the following structure:
- Surface layer is a 1.25mm thick static dissipative layer
- The middle layer is a 0.5mm conductive layer
- The bottom layer is a 1.25mm thick static dissipative layer
Please note, the image is for illustrative purposes only. The exact colour may differ slightly from shown.
| Product Code: | Description: | Size (mm): | Additional Notes: | |
|---|---|---|---|---|
082-0317 |
3 Layer, Smooth Finish | 600 x 1200 | Green | |
082-0318 |
3 Layer, Smooth Finish | 600 x 1200 | Grey | |
082-0319 |
3 Layer, Smooth Finish | 600 x 1200 | Blue |
- 3mm thick ESD bench matting
- Available in grey, green or blue
- Surface resistance: 1 x 106 < R < 1 x 109 Ohms
- Supplied with a 10mm press stud in each corner
- Made from antistatic (conductive) and static dissipative materials with synthetic rubber
- Surface layer is a 1.25mm thick static-dissipative layer
- Middle layer is a 0.5mm conductive layer
- Bottom later is a 1.25mm thick static-dissipative layer
- Matting size 600mm x 1200mm
- For use on ESD work benches
- Suitable for use on EPA floor areas
Download File Not available
