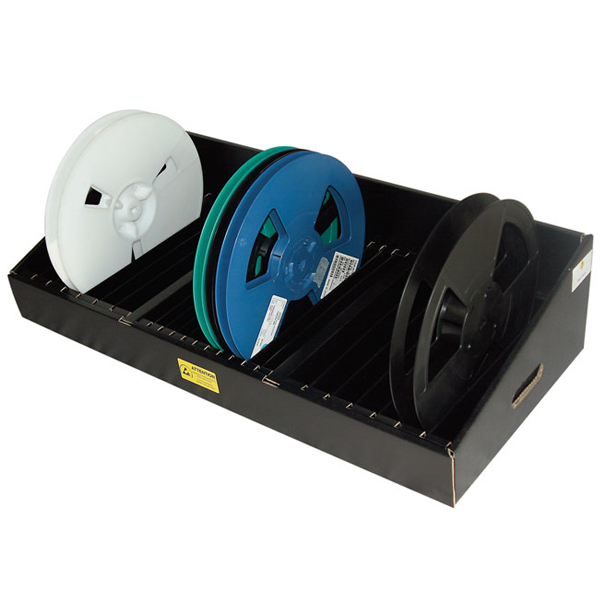

Corstat Reel Storage System
Catering for 7″ and 15″ reels, the Corstat Reel Storage System provides a robust bench mount storage system. With high levels of ESD protection, this product is available in Corstat coated corrugated fibreboard, or as conductive Corriplast making it suitable for cleanroom use or heavy wear environments.
Available in single, double and triple module units, with division spacing of 18mm or 32mm to suit your application.
£0.00
£0.00
- Description
- Features and Benefits
- Applications
- Product Datasheet
Description
The Corstat Reel Storage System is a flexible bench mount storage solution for 7 and 15 components reels. The system is available in single, double and triple module units, and the division spacing can be 18mm or 32mm to suit the application. Manufactured from Corstat coated corrugated fibreboard as standard, the system is also available as conductive fluted polypropylene plastic (Corriplast) for cleanroom or heavy wear environments. The units are supplied fully assembled and configured to suit your exact requirements for ultimate convenience.
| Product Code: | Description: | Size Rear H x W x L (mm): | Cell Width (mm): | No. of Cells: |
|---|---|---|---|---|

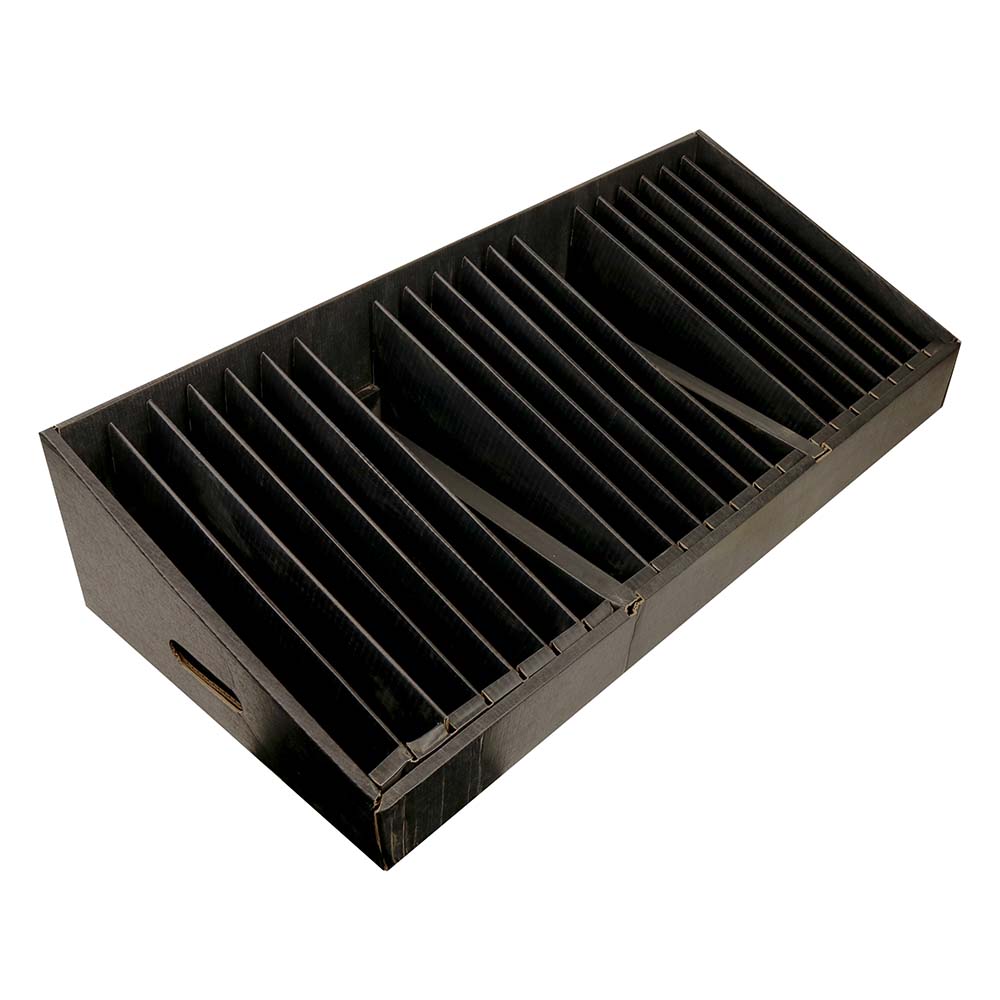

| 026-1071 | Reel Rack 7″ Single Unit | 200 x 240 x 93 | 18 | 11 |
| 026-1072 | Reel Rack 7″ Single Unit | 200 x 240 x 93 | 32 | 7 |
| 026-1073 | Reel Rack 7″ Double Unit | 200 x 240 x 93 | 18 | 22 |
| 026-1074 | Reel Rack 7″ Double Unit | 200 x 240 x 93 | 32 | 14 |
| 026-1075 | Reel Rack 7″ Triple Unit | 200 x 240 x 93 | 18 | 33 |
| 026-1076 | Reel Rack 7″ Triple Unit | 200 x 240 x 93 | 32 | 21 |
| 026-1077 | Reel Rack 15″ Single Unit | 200 x 385 x 93 | 18 | 11 |
| 026-1078 | Reel Rack 15″ Single Unit | 200 x 385 x 93 | 32 | 7 |
| 026-1079 | Reel Rack 15″ Double Unit | 200 x 385 x 93 | 18 | 22 |
| 026-1080 | Reel Rack 15″ Double Unit | 200 x 385 x 93 | 32 | 14 |
| 026-1081 | Reel Rack 15″ Triple Unit | 200 x 385 x 93 | 18 | 33 |
| 026-1082 | Reel Rack 15″ Triple Unit | 200 x 385 x 93 | 32 | 21 |
We stock a wide range of Corstat products. Click here to see our range.
- ESD safe
- Available in a choice of materials to suit different applications
- Cost-effective yet hardwearing
- Available as 7 and 15 reel options
- Can be bought as single, double and triple module units
- Two spacing options – 18mm or 32mm – to suit the applications
- Delivered fully assembled and configured to your requirements
- Storing reels in a bench-mounted setting
- Available in single, double and triple module units
Corstat Reel Storage Systems - Product Datasheet
